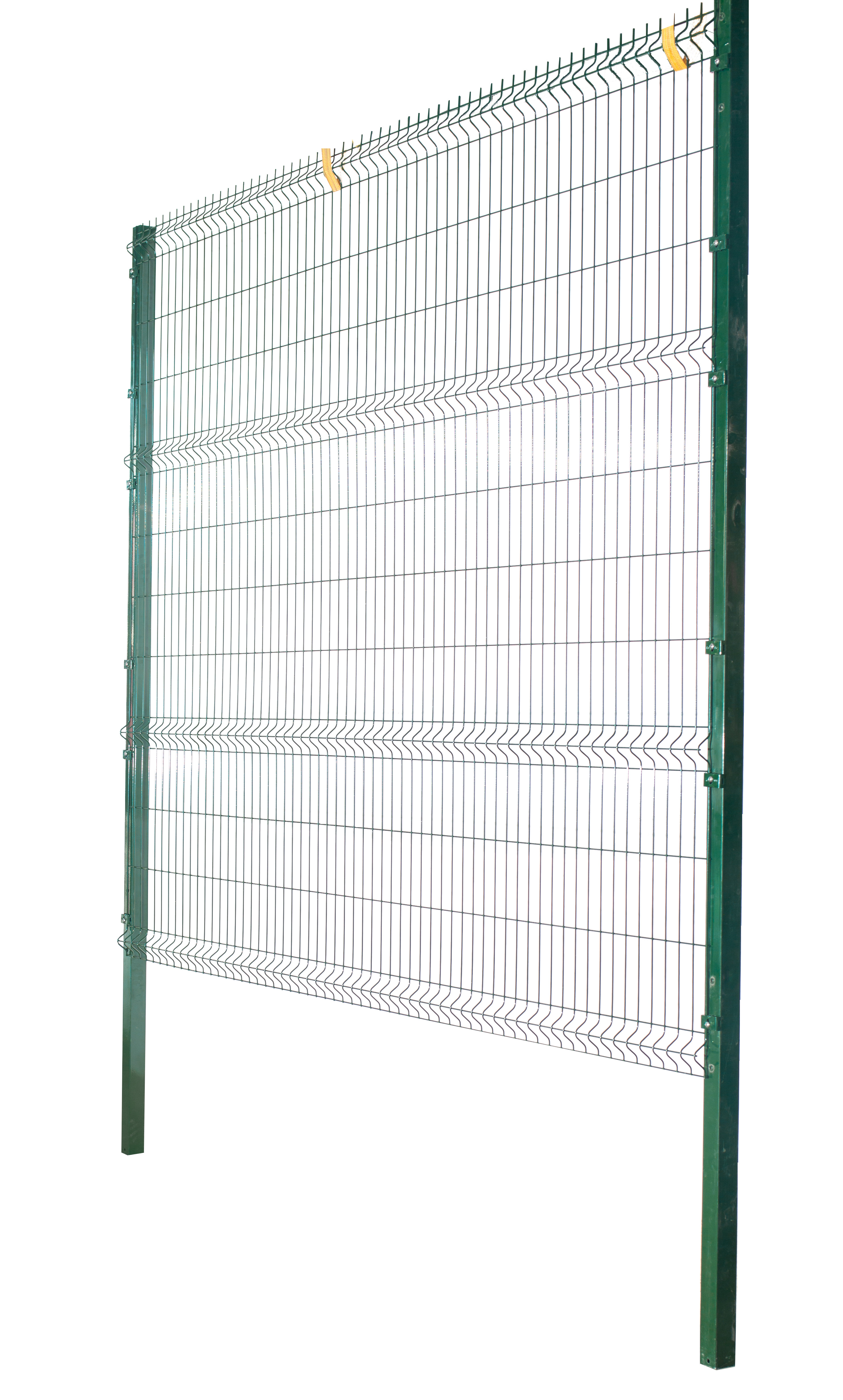

V Mesh Fencing is a very modern means of fencing a land boundary should it be in a rural or city Location.
This product can be used in almost any fencing applications such as Gardens, Schools, Shopping Centre’s, Business Compounds, Sports facilities etc.
Panels Height is 2.43m
Panel Length is 3.0m
Wire Mesh is Galvanised and Powder Coated Green High Carbon 4.8mm Steel
2.43m Panel has 4 x V Crimps per Panel.
Wire Spacings are 200mm x 50mm
Pallet Quantity: 50pcs per pallet.
Pallets Space for Extended Forks.
Posts required for Install – V Mesh Post 3.0m (60x60x2.0mm) (6 x Mounting Points for Brackets and Bolts) + Post cap.
Posts to be set 600mm into a concrete base.
Post Centre’s for install are 3025mm
Posts can be mounted on Concrete with a 60mm Base Plate. Post Height must then be reduced to 1750mm to accommodate concrete mounted Base Plate.
